FreeScan Trio adalah pemindai 3D kelas industri yang menawarkan kemampuan
pemindaian tanpa marker dan akurasi tinggi. Dengan 98 garis lasernya,
pemindai ini dapat menangkap hingga 3.010.000 titik per detik, menjadikannya
salah satu pemindai 3D tercepat di pasaran. FreeScan Trio juga dilengkapi
dengan tiga kamera 5 megapiksel dan fotogrametri internal untuk menangkap
model 3D berkualitas tinggi. FreeScan Trio cocok untuk berbagai aplikasi,
termasuk inspeksi produk, rekayasa balik, dan prototipe cepat.

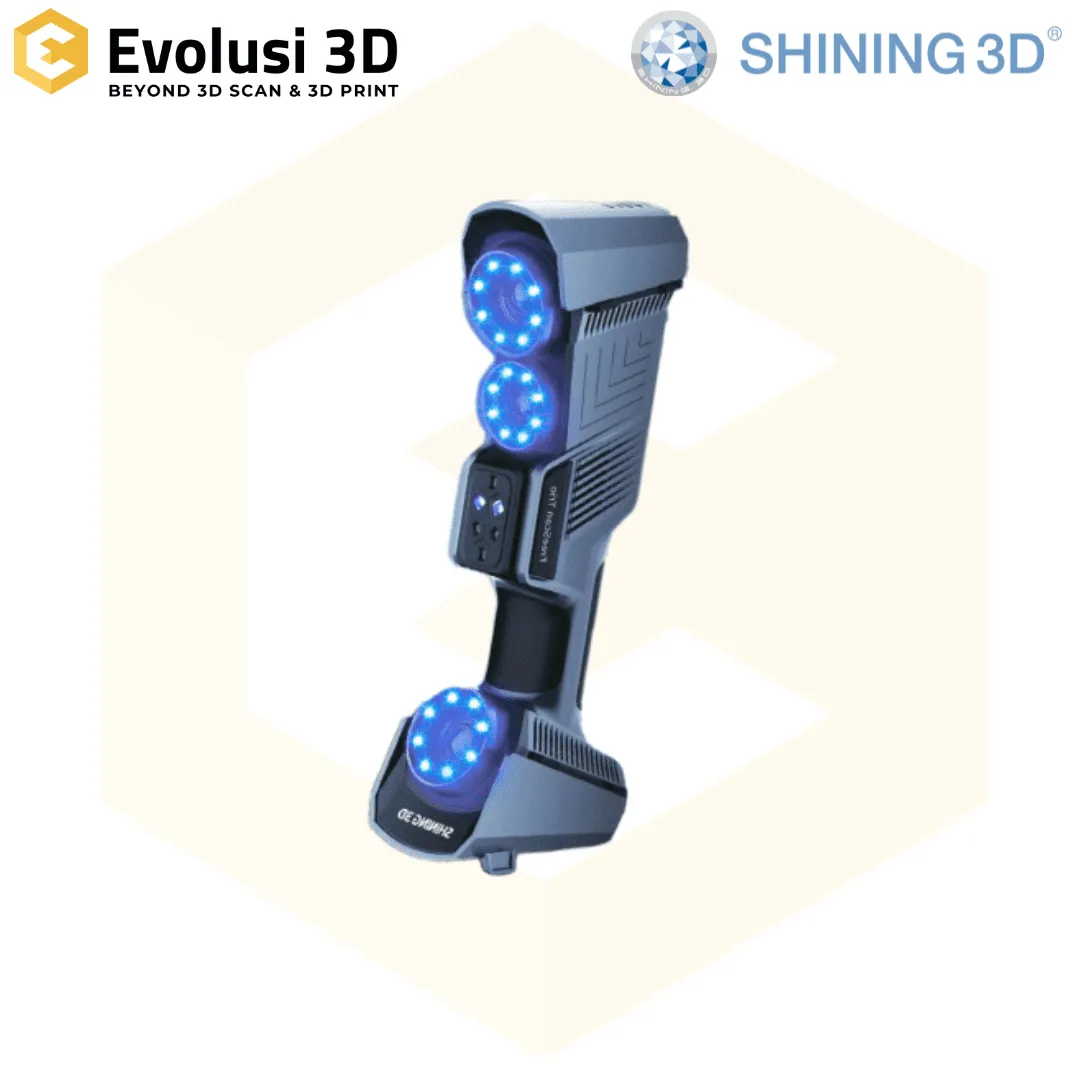

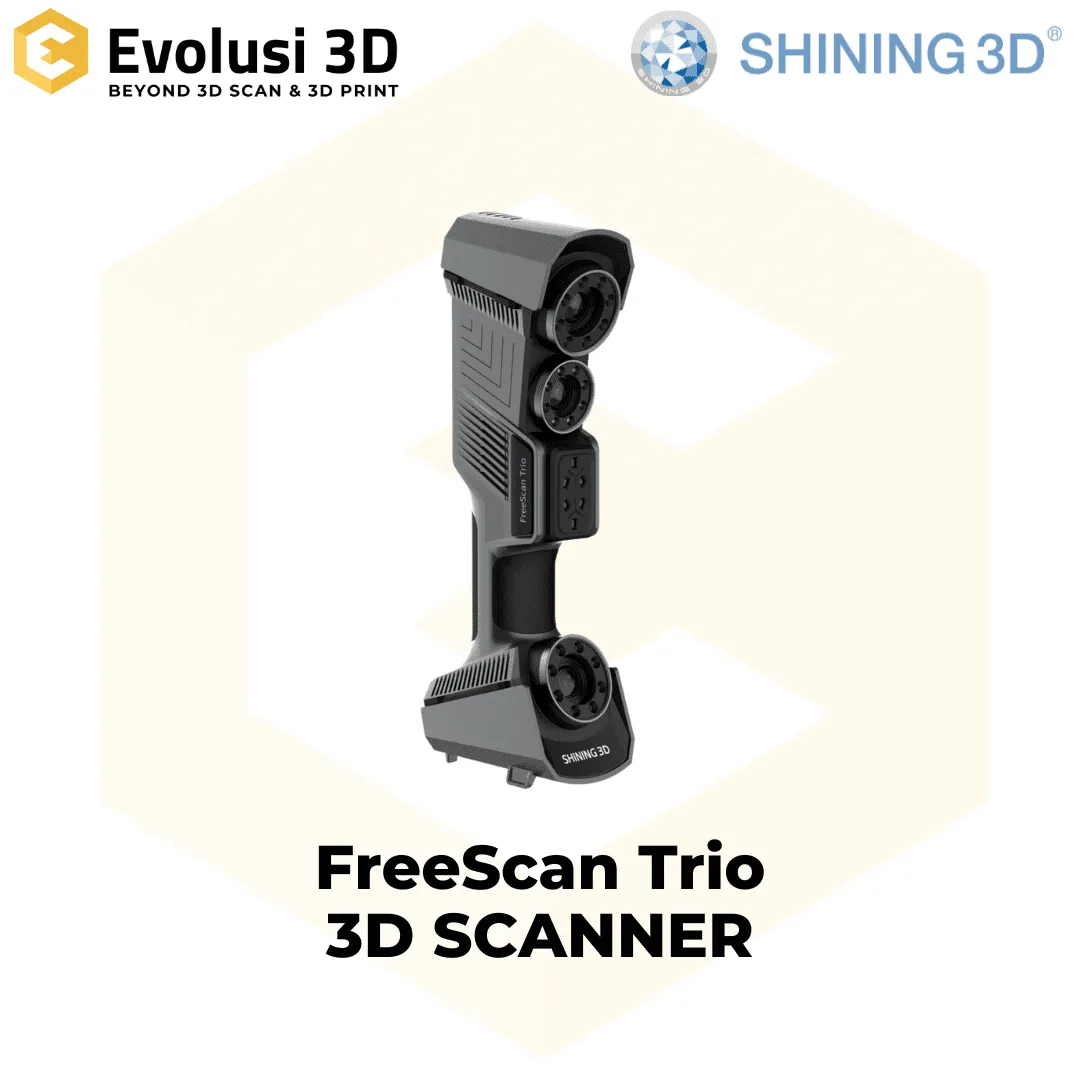

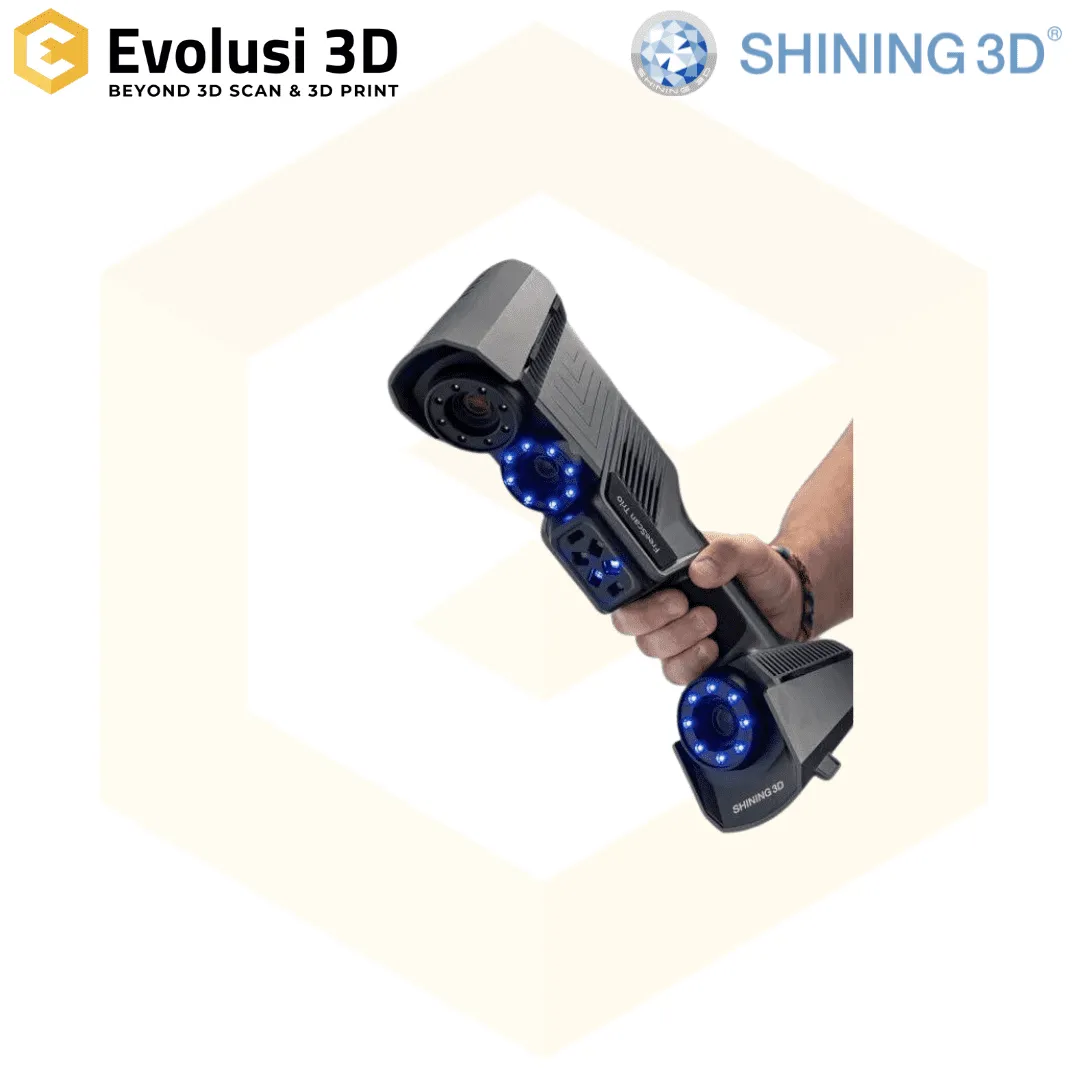

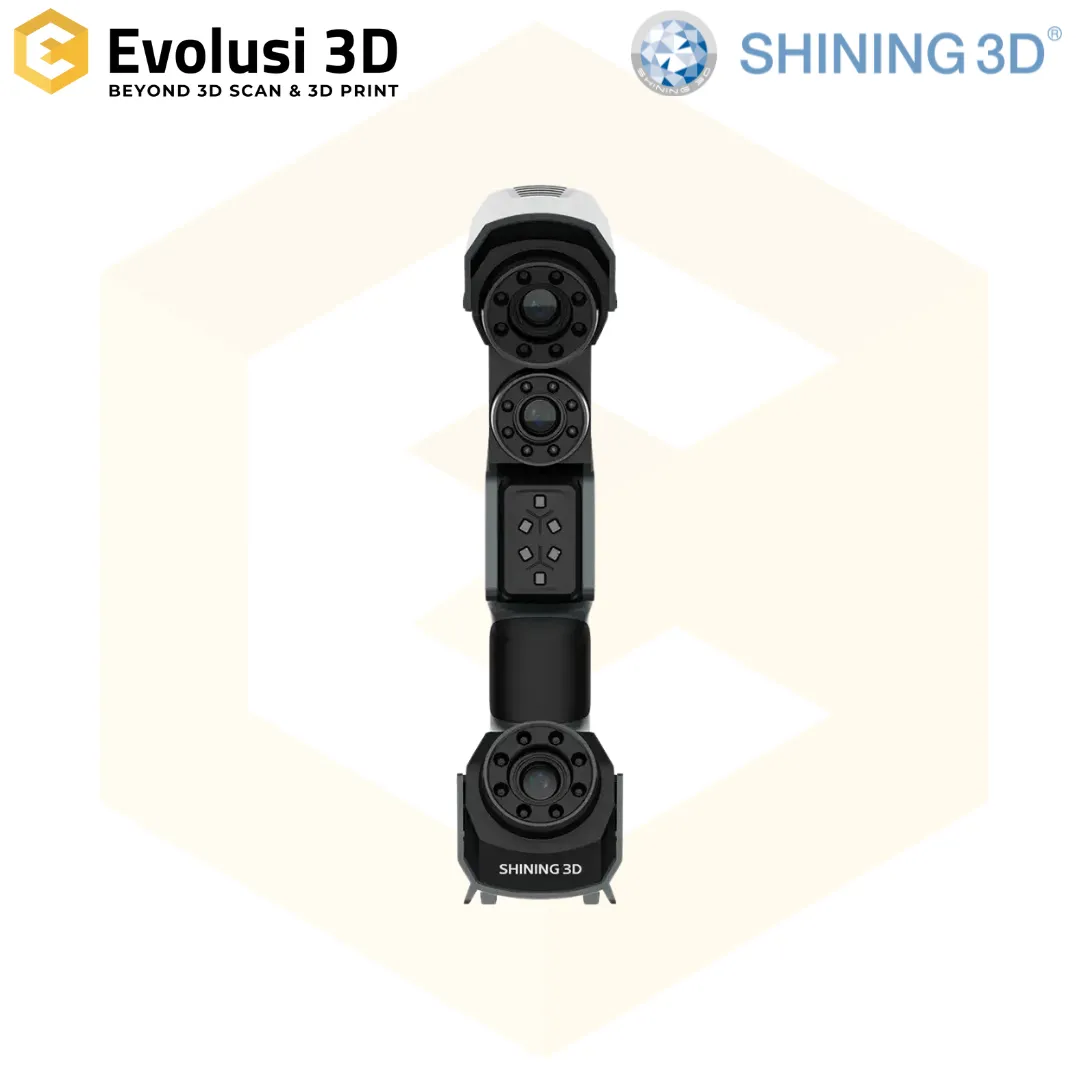

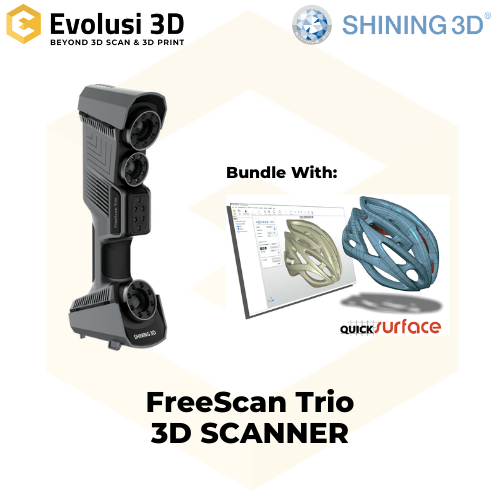

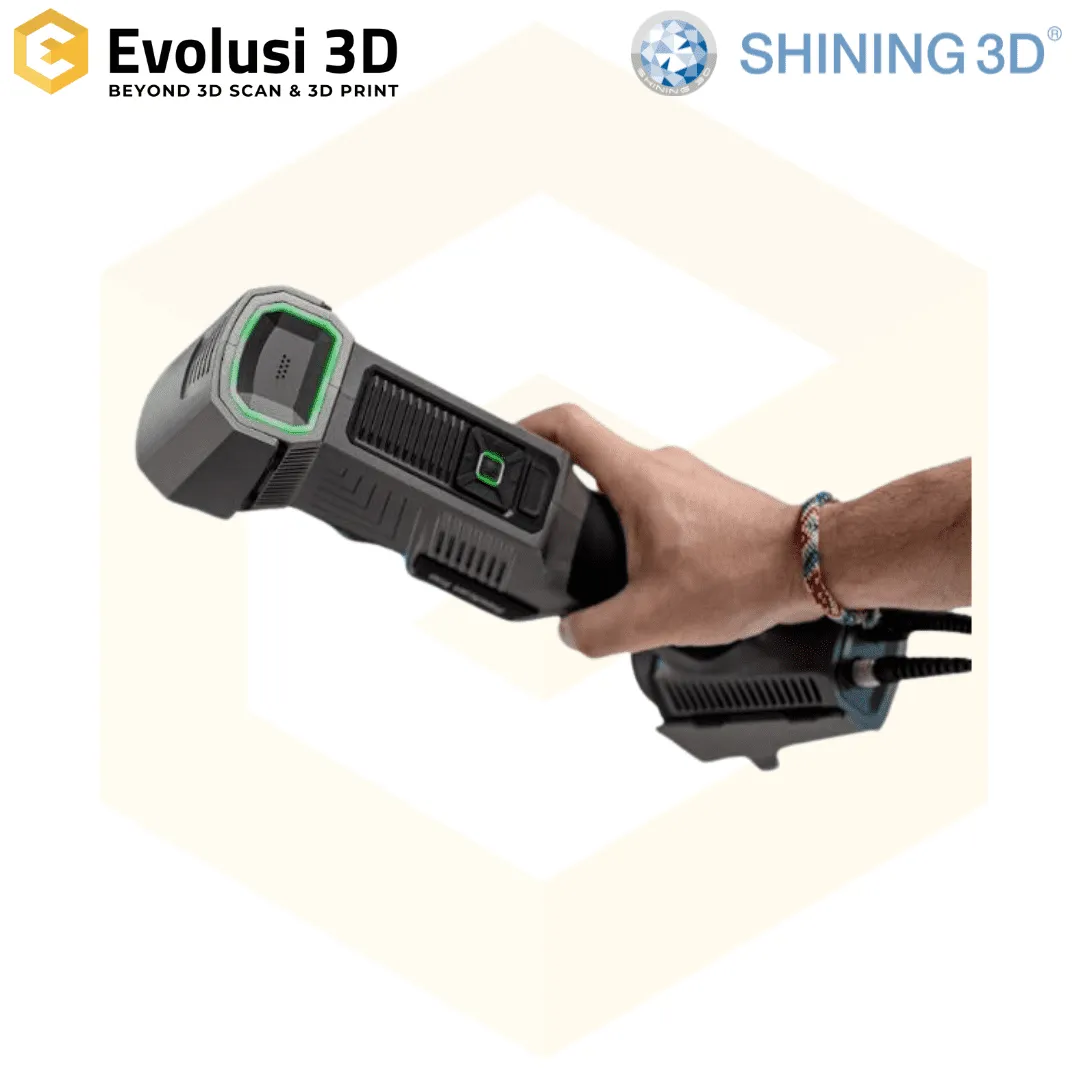

Shining 3D Frescan Trio
Please request the quote to get the price
Loading...
| Weight | 0,8 kg |
|---|---|
| Dimensions | 33 × 7 × 12 cm |
| Brand | Shining 3D |
| Link Principal | https://www.shining3d.com/solutions/freescan-trio/ |
| 3D Scanner Technology | Laser triangulation |
| Light Source Technology | Blue Laser |
| Scan Model | 010, 98 laser lines: Marker-free scanning, high speed (up to 3 |
| Scan Accuracy | Up to 0.02mm |
| Volumetric Accuracy | 0.02 + 0.015mm/m with photogrammetry, 0.02 + 0.03mm/m |
| Scan Speed | 000 points/second, 010, Up to 3 |
| Working Distance | 200 – 300 mm |
| Point Distance | Not specified |
| Texture Scan | Yes |
| Connectivity | USB 3.0 |
| Output Format | ASCI, OBJ, PLY, STL |
| Weight of 3D Scanner | 0.8 kg |
| Dimensions of 3D Scanner | 331 x 120 x 76 mm |
| Recommended Scanned Object Dimension | Versatile for objects of various sizes, with field of view adjustments based on scan mode |
