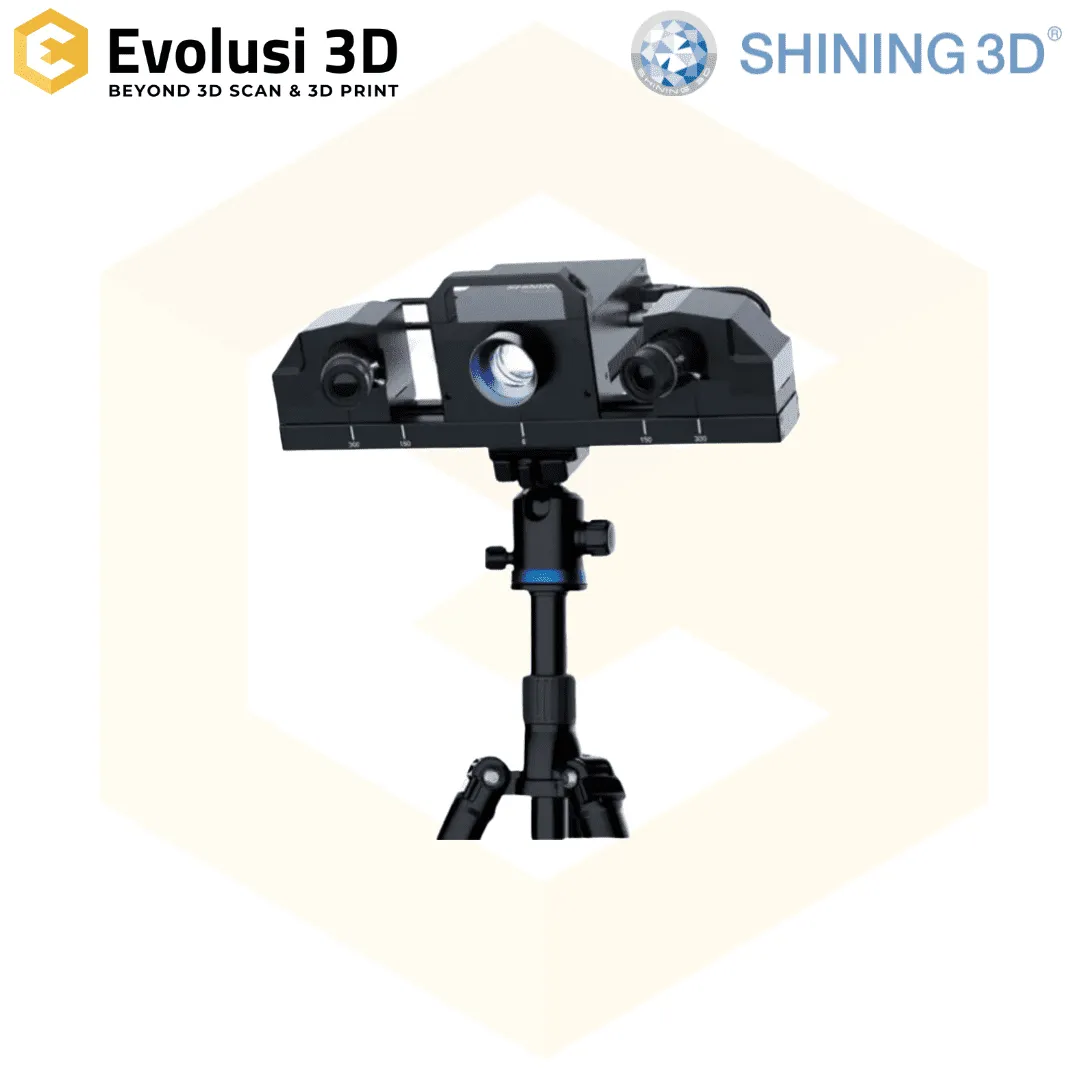

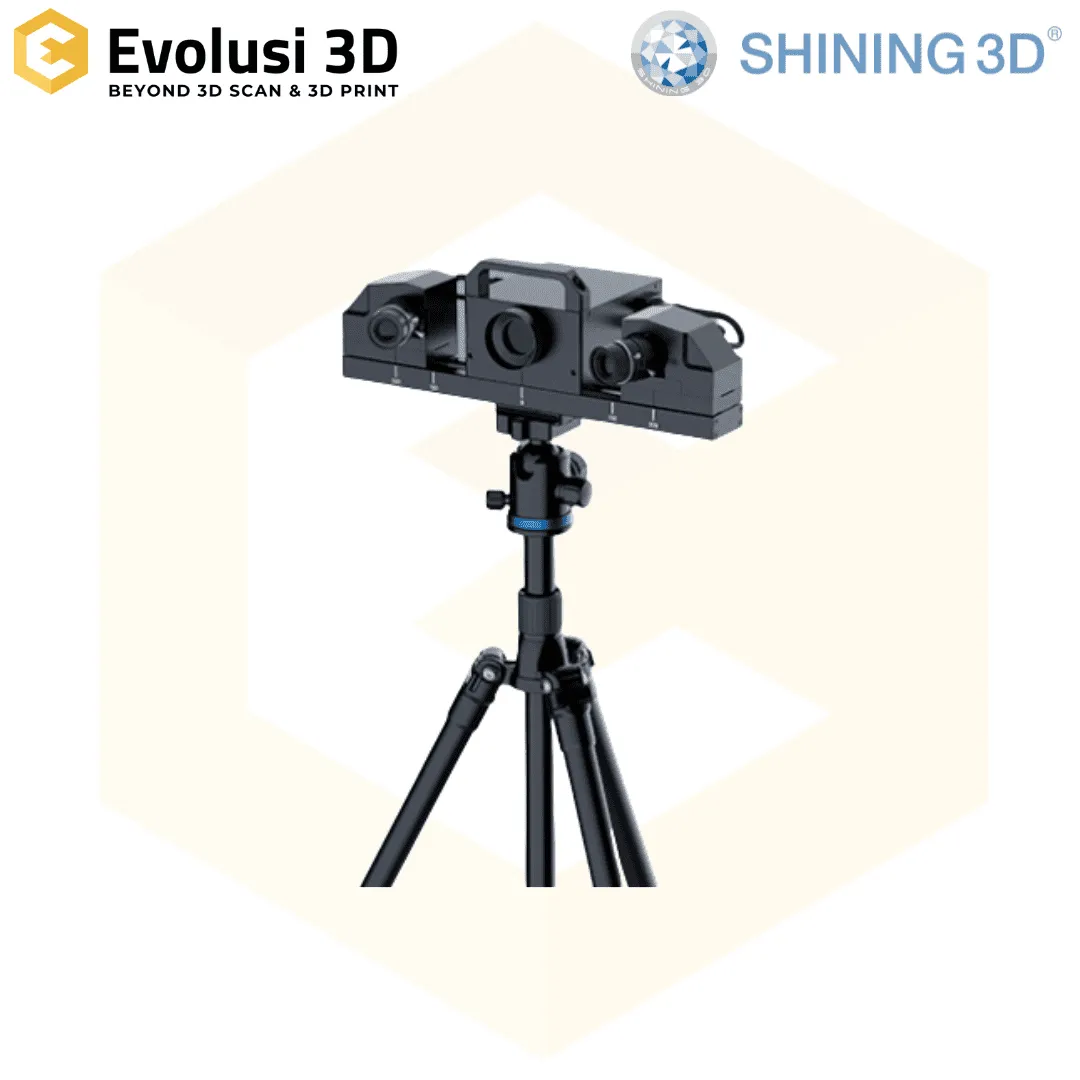

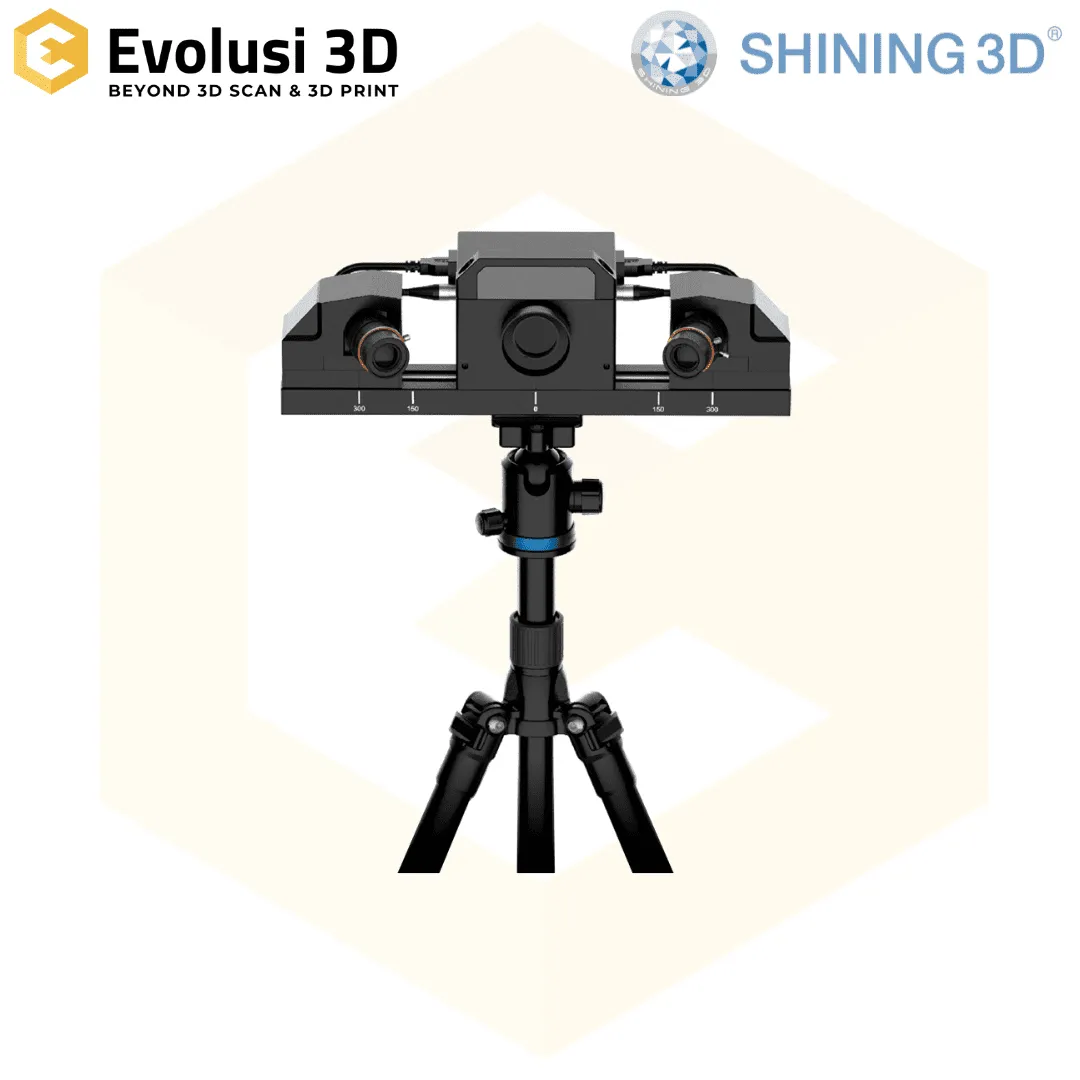

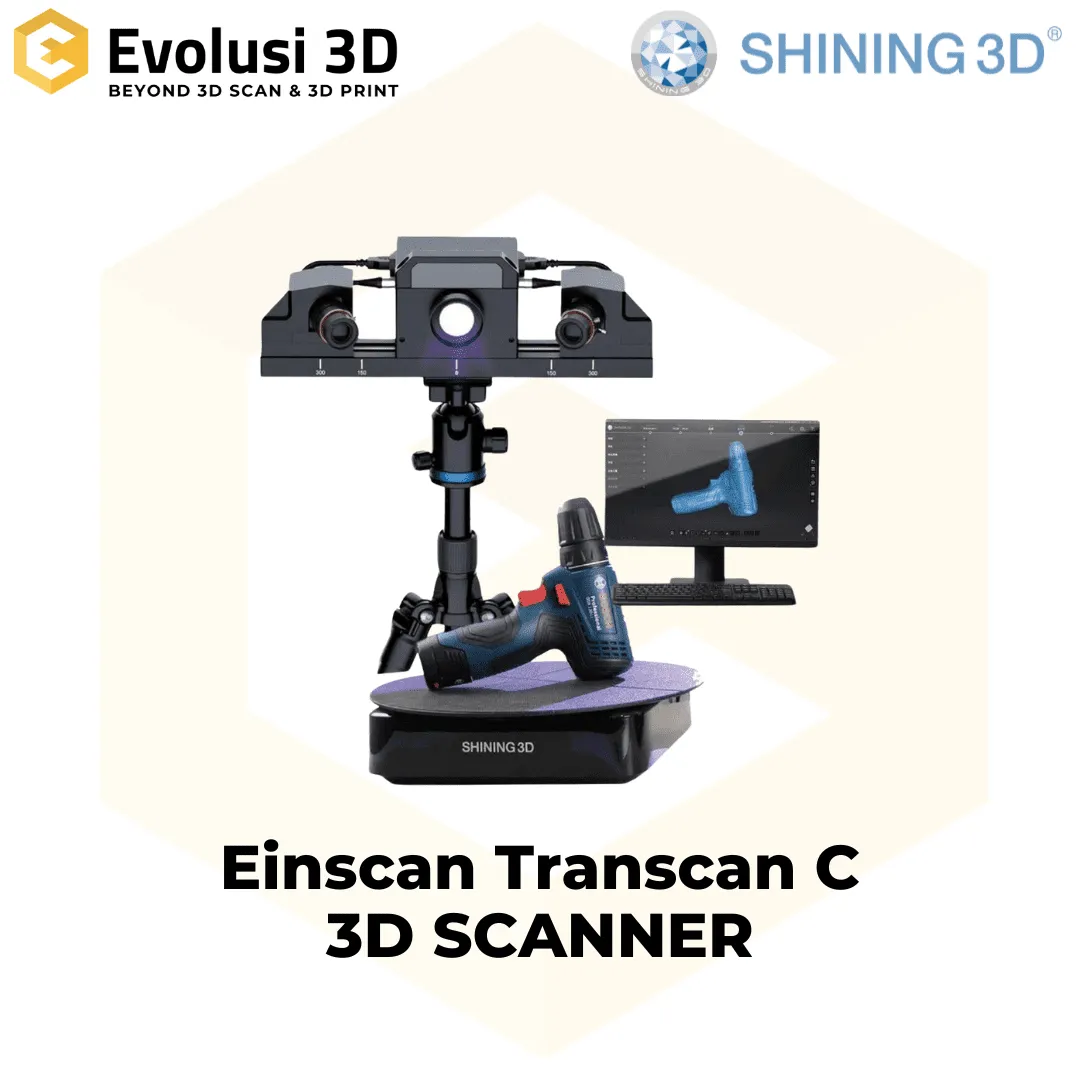

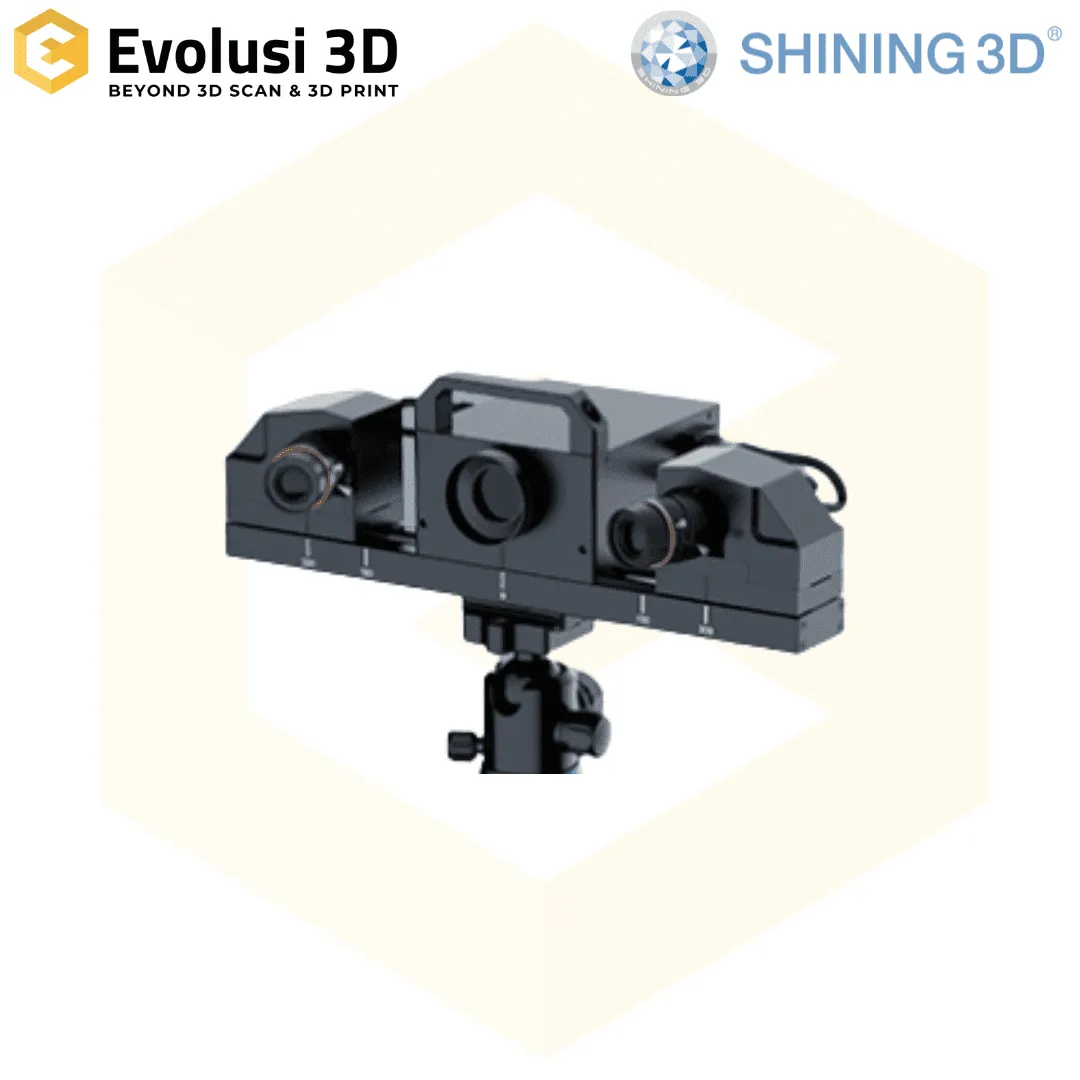

Shining 3D Transcan C

Einscan Transcan C menghadirkan pemindaian 3D resolusi tinggi dengan
akurasi hingga 0,03 mm, menangkap detail halus dan tekstur dengan presisi.
Area pindai yang besar dan fleksibel memungkinkan pemindaian objek berbagai
ukuran, dan sistem warna 24-bit menghasilkan replika warna yang realistis.
Cocok untuk berbagai aplikasi, termasuk desain, manufaktur, dan kontrol
kualitas.

Weight	8 kg
Dimensions	53 × 52 × 38 cm
Brand	Shining 3D
Link Principal	https://www.einscan.com/einscan-se
3D Scanner Technology	Structured light
Light Source Technology	White LED Light
Scan Model	Automatic, Manual
Scan Accuracy	<3s (single frame without texture), <70s (8 scans/turn without texture)
Volumetric Accuracy	NA
Scan Speed	<3s (single frame without texture), <70s (8 scans/turn without texture)
Working Distance	8 Scans Mode 260mm, Single Scan 480mm
Point Distance	8 Scans Mode 0.0375mm；0.075mm；0.114mm, Single Scan 0.075mm；0.154mm；0.23mm
Texture Scan	RGB 24-bit color
Connectivity	USB 3.0
Output Format	ASC, OBJ, PLY, PTX, STL
Weight of 3D Scanner	8 Kg
Dimensions of 3D Scanner	530 mm x 380 mm x 520 mm
Recommended Scanned Object Dimension	300 mm x 190 mm x max), Small to medium size objects (e.g.
