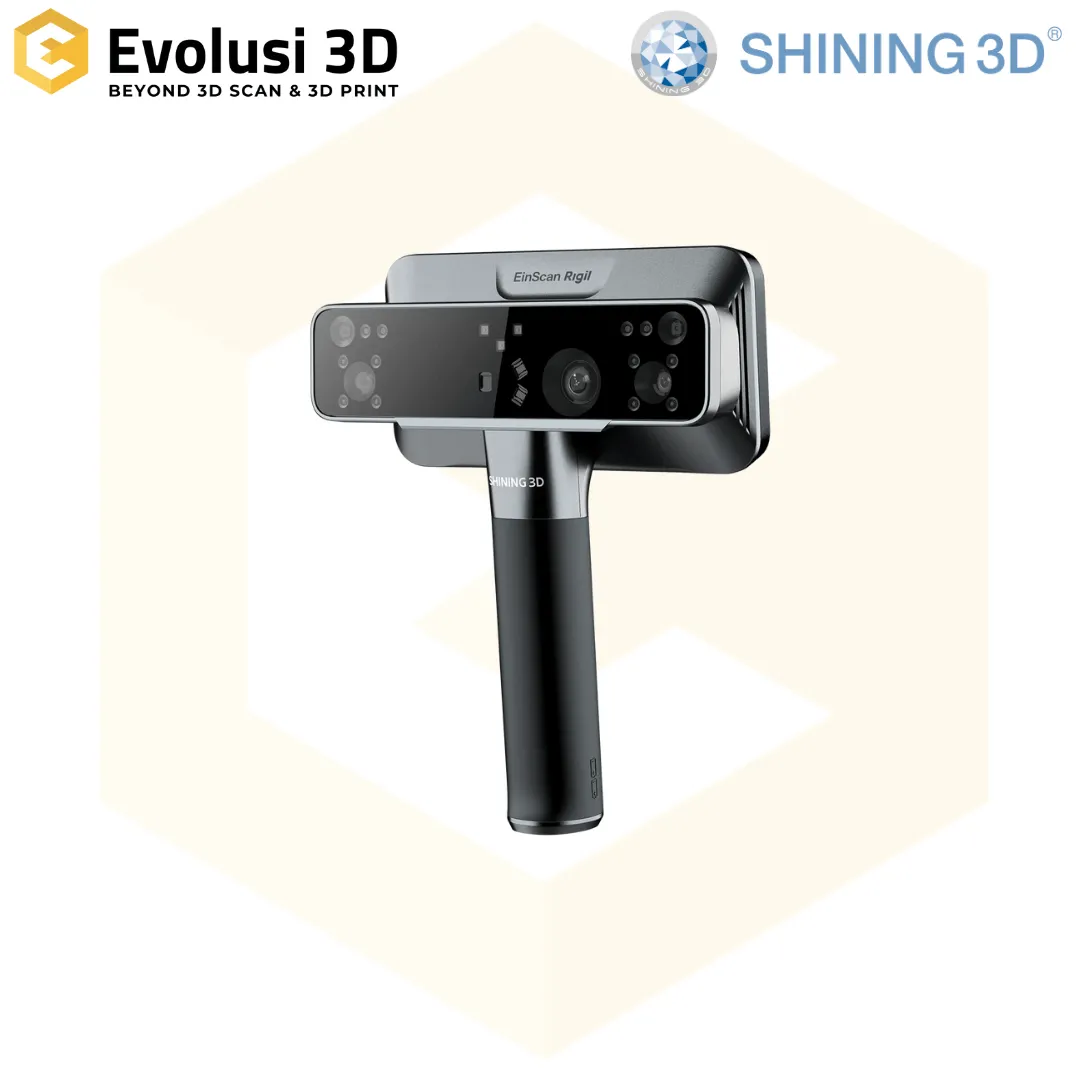

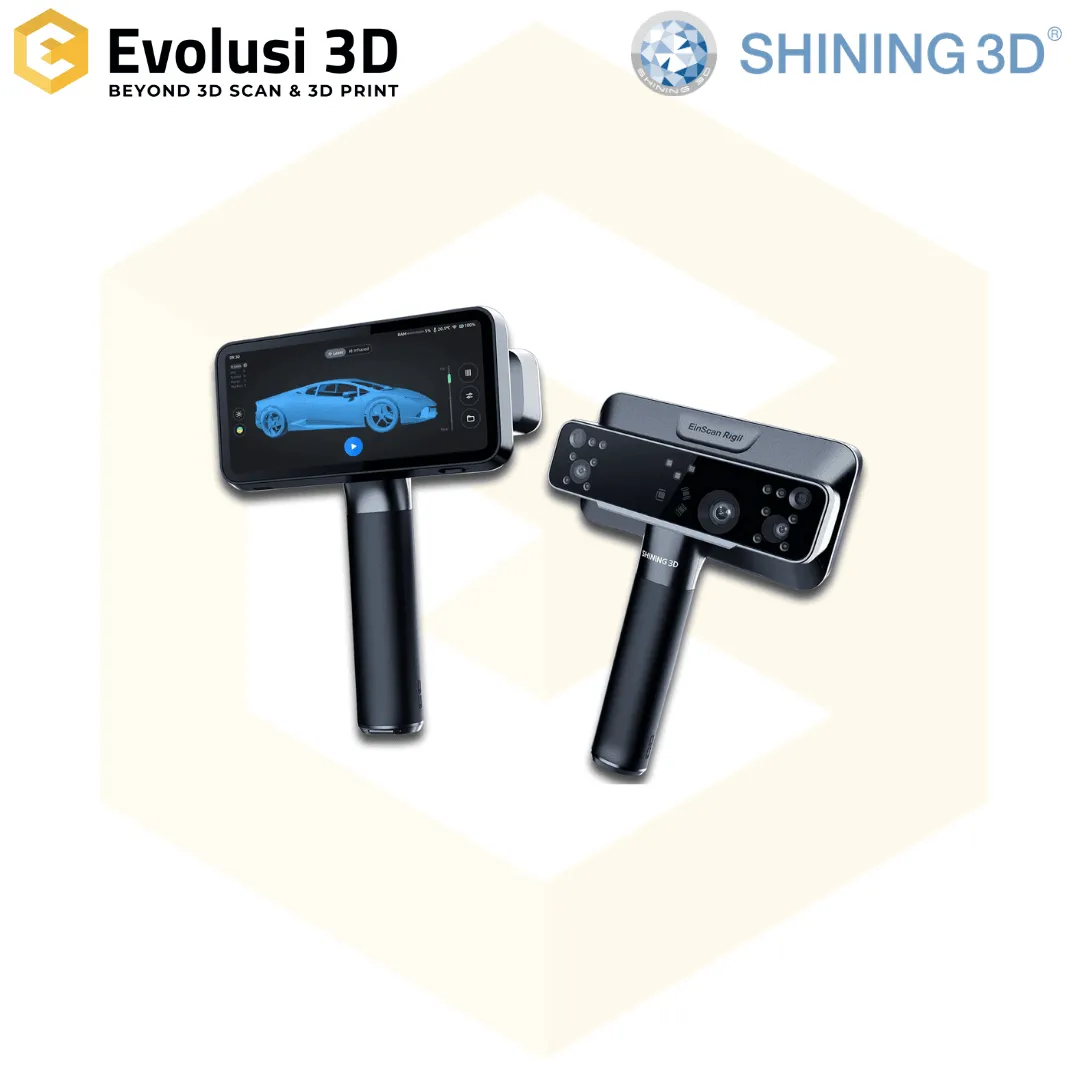

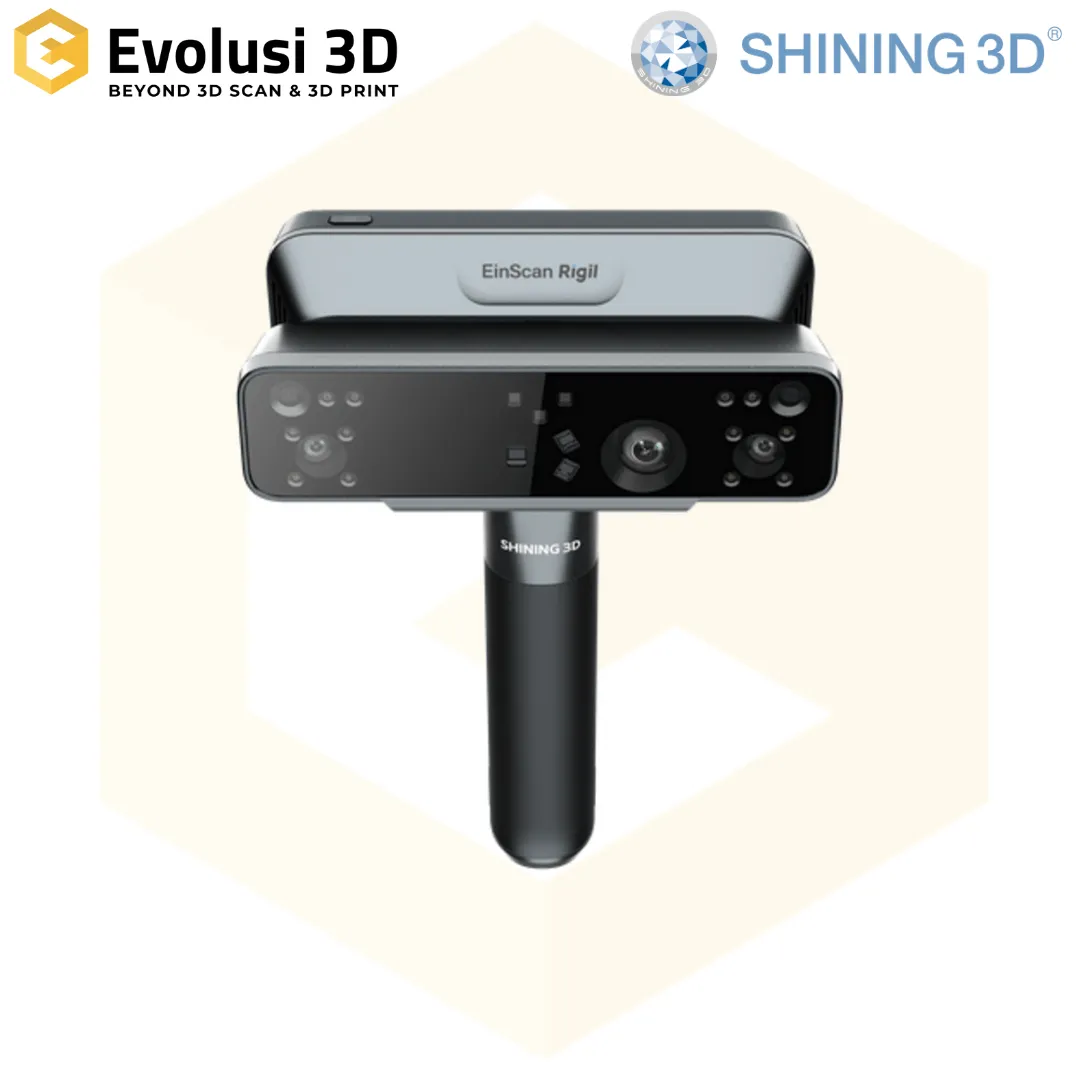

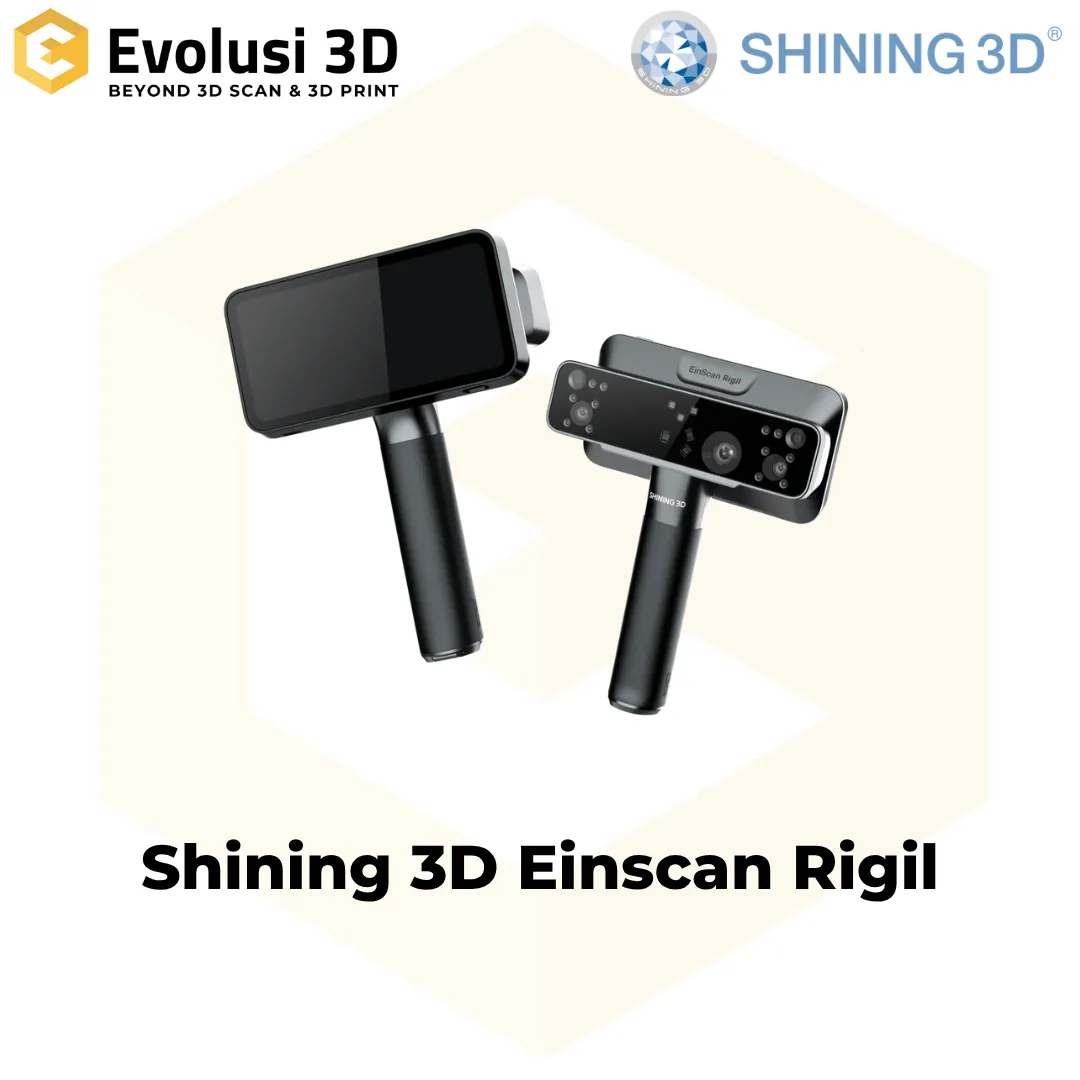

Shining 3D Einscan Rigil

Scanner laser 3D tri‑mode yang sepenuhnya nirkabel dan self‑contained dengan prosesor onboard, cocok untuk kebutuhan scanning berbagai ukuran dan kondisi. Menghadirkan akurasi volumetrik hingga 0,04 + 0,06 mm/m dan resolusi geometrik hingga 0,05 mm, serta mode pencahayaan ganda (laser biru dan IR VCSEL) yang dapat berganti secara dinamis—serta adaptor tanpa marker untuk pemindaian cepat dan detail. Cocok untuk aplikasi otomotif, reverse engineering, dan modelling industri presisi.

Weight	5 kg
Dimensions	23 × 18 × 73 cm
3D Scanner Technology	Laser HD dan Infrared Rapid Hybrid
Light Source Technology	Laser HD; Infrared VCSEL
Scan Model	19+19 Crossed Laser Lines; 7 Blue Parallel Lines; Infrared VCSEL
Scan Accuracy	Not specified
Volumetric Accuracy	Laser Mode up to 0.04+0.06mm/m; Infrared Mode up to 0.1+0.4mm/m
Scan Speed	Crossed Laser up to 4.400.000 pts/sec; Parallel Lines up to 940.000 pts/sec; Infrared up to 1.600.000 pts/sec
Working Distance	Laser HD 170~150mm; Infrared 160~1500mm
Point Distance	Laser HD 0.05~10mm; Infrared 0.2~10mm
Texture Scan	Not specified
Connectivity	Wireless & Wired mode (Fiber optic)
Output Format	Not specified
Weight of 3D Scanner	2 Kg
Dimensions of 3D Scanner	233 x 180 x 73 mm
Recommended Scanned Object Dimension	Not specified

Shining 3D Einscan Rigil
