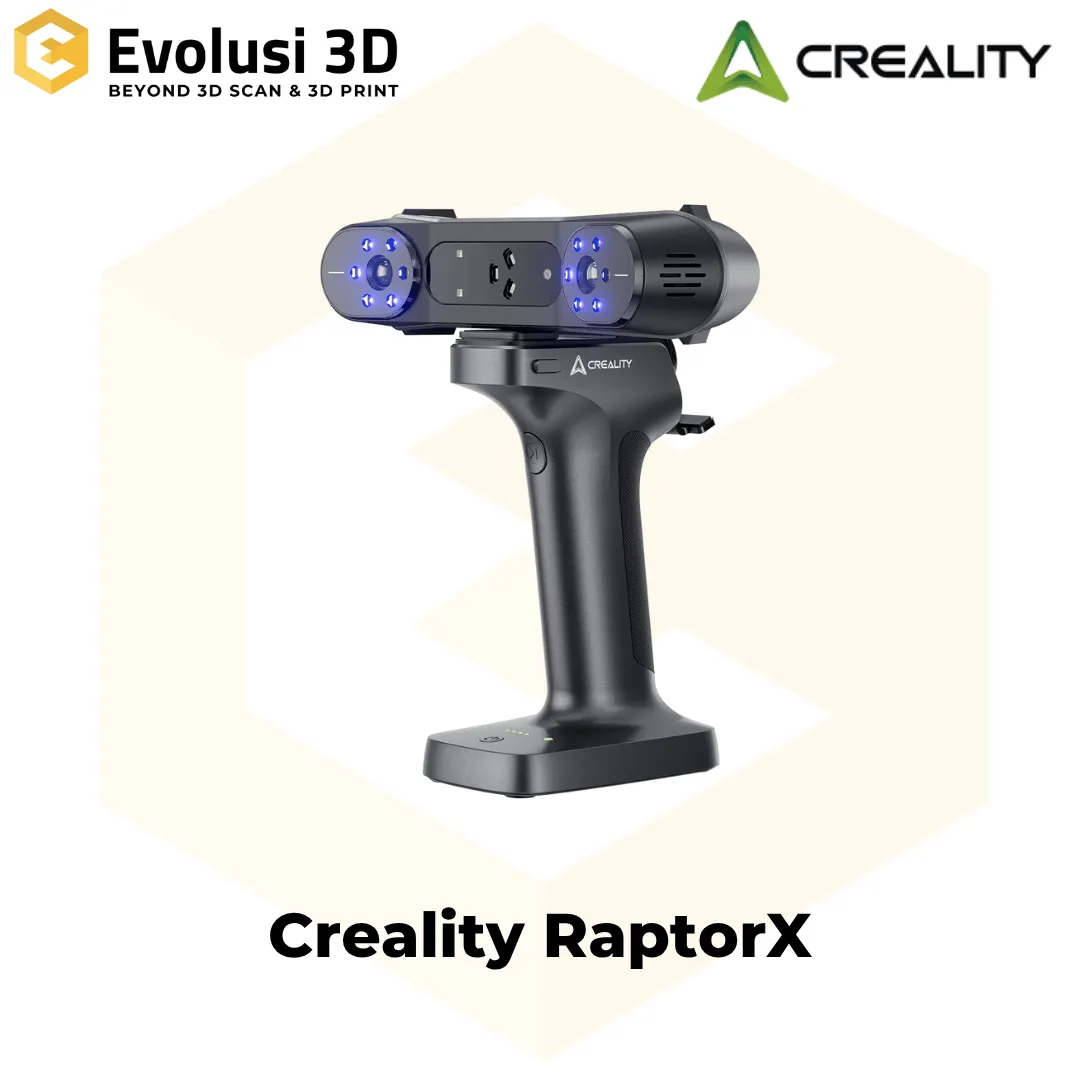

Creality RaptorX

Creality RaptorX adalah 3D scanner industri berakurasi tinggi yang mampu memindai objek dengan detail presisi dan kecepatan optimal. Mendukung multi-mode scanning untuk berbagai ukuran objek, serta dilengkapi software intuitif, menjadikannya solusi ideal untuk reverse engineering, desain produk, dan kontrol kualitas.

Weight	5 kg
Dimensions	21,5 × 5 × 7,4 cm
3D Scanner Technology	Hybrid (Blue Laser + NIR structured light)
Light Source Technology	Blue laser lines (34 cross + 7 parallel) + Near-Infrared (NIR) & supplemental LED texture light
Scan Model	Automatic or Semi-automatic
Scan Accuracy	Up to 0.02mm
Volumetric Accuracy	0.02 mm + 0.06 mm/m (blue laser modes)
Scan Speed	Blue laser modes: up to 60 fps ~1,020,000 points/s, NIR mode: up to 30 fps ~3,580,000 points/s
Working Distance	Cross lines (34 lines): 200–600 mm, NIR mode: 170–1200 mm, Parallel (7 lines): 150–400 mm
Point Distance	Up to 0.1 mm
Texture Scan	Yes
Connectivity	USB Type-C, WiFi 6
Output Format	OBJ, PLY, STL
Weight of 3D Scanner	1 Kg
Dimensions of 3D Scanner	215 x 50 x 74 mm
Recommended Scanned Object Dimension	Small to medium-sized objects

Creality RaptorX
